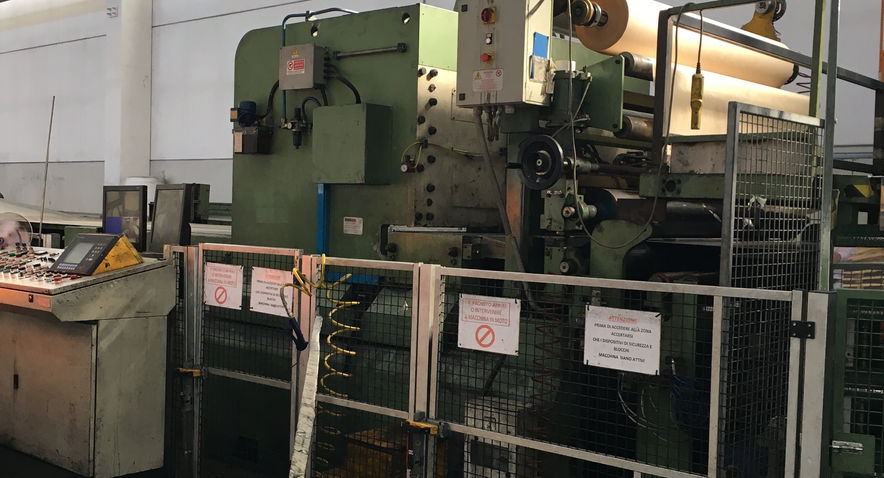

SPECIFICATIONS #3911
​
Material: Cold & Hot Rolled Steel
Maximum Tensile Strength: 750 N/mm2
Maximum Yield: 600 N/mm2
Maximum Elongation: 20%
Minimum / Maximum Coil Width: 600mm / 2100mm
Coil Max. Weight: 30 Ton
Minimum Material Thickness: 5mm
Maximum MaterialThickness: 12.7mm
Minimum / Maximum Coil ID: 508-610-760mm
Minimum / Maximum Coil OD: 900mm / 1800mm
Minimum / Maximum Part Length for auto.-stacking of sheets: 500mm / 12000mm
Sheet Length Tolerance: + .7mm up to 2000mm sheet length; adding + .1mm per-meter over this length
Tolerance on Sheet Diagonal: + .35m per-meter
Maximum Stack Weight: 5 Ton
Maximum Stack Weight per-meter: 2.5 Ton
Maximum Stack Height (incl.: pallet): 500mm
Stack Evacuation: lengthwise
Coil Introduction Speed: 15m / min
Max. Line Speed: 30m / min
Passline Height: 1500mm
Line Direction: Right To Left
Decoiler & Recoiler Pull Force: 70 kN
Number Of Cuts/minute & Line Speed according to sheet length
500mm sheet length: 15 cuts – 7.5m / min
1000mm: 12 cuts – 12m / min
1500mm: 10 cuts – 15m / min
2000mm: 9 cuts – 18m / min
3000mm: 8 cuts – 24m / min
4000mm: 7 cuts – 28m / min
5000mm: 6 cuts – 30m / min
6000mm: 5 cuts – 30m / min
7000mm: 5.43 cuts – 30m / min
8000mm: 4.28 cuts – 30m / min
10000mm: 3 cuts – 30m / min
12000mm: 2.5 cuts – 30m / min
COIL STORAGE RAMP
for 2+1 coils (minimum coil width: 950mm)
in-line
with nylon-coated surfaces
saddle with dia. 240mm rolls, 500mm wide
700mm up/downstroking (speed: 3m / min)
7900mm horizontal stroke (translation speed: 6m / min)

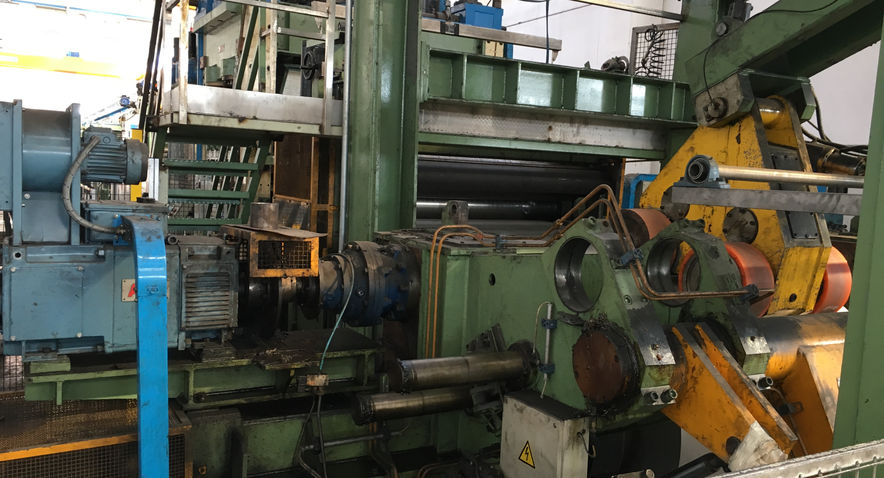

DOUBLE OPPOSED MANDREL DECOILER
with mandrel expansion range: 448—810mm, for three Coil ID’s (508mm, 610mm, 760mm)
TELESCOPIC COIL-OPENING TABLE
with extension speed: 100mm / sec
extension force: 6300 N
ENTRY PINCH ROLLS
with dia.: 350mm
max. pull force: 1600 N
4-HI LEVELER
with 5 upper work rolls + 6 lower work rolls, roll dia.: 130mm
2300mm roll length
5 + 5 sets of back-ups, upper and lower
MEASURING WHEEL
with dia.: 159mm
5000 pulses/rev.
resolution power: .1mm / pulse
average clamping pressure: 4.5 bar
FLYING SHEAR
2200mm wide
angle: 2°
80 cycles/min
max. 15 cuts/min
SHEET TRANSFER BELT #1 TO STACKER
1500mm long
SHEET TRANSFER BELT #2 TO STACKER
7000mm long
SCRAP BOX
with cap.: ca. 1.2 m3, 300 kg
EXIT PINCH ROLLS
with dia.: 240mm
installed power: 15.6 kW
CAR
with 2950mm stroke
centering device opering: 200—2000mm
STACKER
for sheets up to 12m long
side-equalizer length: 6m + 6m
horizontal stroke of air cylinders: 200mm
max. number of sheets per-box: 15 / minute
